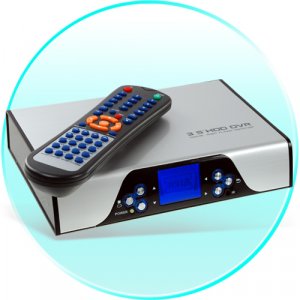

CVSB-HD01
SATA HDD media DVR enclosure with AV recording and viewing with a modern easy-to-use software interface.
Superb digital video recording (DVR) system in a convenient form factor with a sleek brushed metal finish. This unit has two primary modes of operation, (1) connect this DVR to your TV set to digitally record and playback your favorite TV shows, and (2) load this up with your digital media files from your computer to playback on your big screen TV.
This fantastic system provides convenient one-touch recording (OTR), timeshift feature, recording schedules (editable) and ethernet playback. The system also has a clear LCD status display on the front of the unit to provide helpful information to you. This fully featured system also gives HD output to either 720P or 1080i for high-definition viewing. The unit's first class functionality continues with its impressive support for a vast range of video, movie, picture and audio formats.
All of this feature-rich functionality is easily accessible through the system's remote control unit and user-friendly on-screen OSD menu interface to provide you with effortless navigation. A range of connectivity options are available through the system's card slots and ports. This unit makes it easy to copy and transfer your media files effortlessly to and from the HDD multi-media system and your computer.
At a Glance...
SATA HDD digital video recorder and multimedia player (DVR)
500GB storage capacity
LCD status display
Plays a huge range of video, music and image formats
Manufacturer Specifications
Primary Function: HDD media recording and viewing enclosure
Hard Disk Enclosure Information:
- SATA Enclosure for 3.5 or 2.5 inch drives
- Max HDD Size: 500GB
- File System: FAT32 (Stand Alone Media Operation - connected to TV), NTFS (when used for external data storage only)
Supported Video Formats: DAT, VOB, IFO, MPG, AVI, MPEG 1, MPEG 2, MPEG 4, DIVX (4&5), XVID
Supported Audio Formats: MP3, OGG, WMA
Supported Picture Format: JPEG
Supported Subtitle Formats: SRT, SMI, SST
AV Recording: MPEG 2
Resolutions:
- 480P
- 576P
- 720P
- 1080I
Recording Presets:
- HQ
- SP
- LP
- EP
- SLP
Connections:
- Component Video (Y,Pb,Pr)
- USB IN
- USB OUT (Host) x2
- HDMI
- AV OUT
- AV IN
- RJ45 Ethernet
- SPDIF Out (Coax Digital Sound)
Video Output: Up to 1080i
Aspect Ratios: 4:3 PS, 4:3 LB, 16:9
USB: 2.0
Memory Card Slot Formats: SD, MMC, MS, MS Pro
Compatible Systems:
- Windows 2000, XP, Vista, Windows7 (32 bit versions)
- MAC OS
- Linux
(Note: If your partition some of the drive in NTFS then only Windows based operating systems will be able to write to it)
Languages: English, Spanish, French, German, Italian, Dutch, Russian
Power Source: AC power supply
Certification: FCC, CE, RoHS
Dimension: 215mm x 140mm x 43mm
Manufacturer Ref: LFBK7YV2A4J4
Product Notes
Built in cooling fan in the bottom of the unit - give it plenty of space for proper ventilation
Works with 3.5 or 2.5 inch SATA HDD drives
Support for management (Copying and Delete) between Cards, USB, HDD and computer
Preview files before you play them
Internal formatting (the enclosures OS can format your drive correctly for you)
Full Featured Remote Control
DIY installation is simple, effective and hassle-free with no special tools required
The DVR can also be connected directly to a PC
Example AV Recording Time on a 250GB drive (or Partition):
- High: 50 Hours
- Medium: 100 Hours
- Low: 150 Hours
Note: This product is not sold with a Hard Disk included. You will need to purchase a hard disk drive separately.
Package Contents
Model CVSB-HD01 Hard Drive Enclosure
Manual - English
CD Driver
Component OUT cable
x2 Composite AV cable
Mini-USB cable
Remote Control
Coax Digital Sound Out
Mounting Hardware
Power Supply (100-240V, 50/60Hz)
