CVET-C56

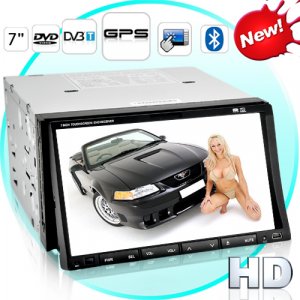

The Street Wolf, an awe-inspiring 2-DIN (100 mm high) car DVD player with 7 inch high definition touchscreen brilliance (800 x 480 pixel resolution) and multimedia wizardry like DVB-T for front of the line in-car entertainment and all the functionality you'll need such as GPS and Bluetooth for a VIP driving experience everytime!
Feast on this entertainment buffet: The Street Wolf offers a whole new level of entertainment genius:
Region-Zero DVD player (easily plays disks from any country)
DVB-T digital television for FREE!
Runs all CD and VCD formats
Plays tunes from your iPod or MP4 player
Plays multimedia files from your SD card or USB flash drive
It's got AM/FM radio with 30 presets!
Driven To Be The Best: The Street Wolf designers were driven with one single purpose in mind: to build a car DVD player with the driver in mind. The C56 Street Wolf easily handles the most popular GPS maps so you'll always experience Zen-like calm while you're behind the wheel. Lane assist voice instructions, points of interest suggestions, and continually updated with traffic and weather feeds are just some of the cutting edge GPS features you'll come to love while using The Street Wolf! Or if you're into hands on the wheel safety while you talk with co-workers and family, The Street Wolf delivers in style. Bluetooth pair you phone cell with the unit when you get in the car and you'll be able to talk to your callers through the built-in MIC while listening to them through your car speakers! By the way, did we mention that The Street Wolf also has a lightning fast 3D Flash revolving interface and delivers true Picture in Picture (PIP) amazingness!
At a Glance...
High Definition 7.0 Inch LCD True Touchscreen
Astounding 800 x 480 Screen Resolution
DVB-T and free magnetic antenna
GPS and free magnet antenna
Free 2GB SD card with evaluation GPS software
Picture in Picture (PIP)
3D Flash interface!
Manufacturer Specifications
Primary Function: 2-DIN High Definition 7 Inch True Touchscreen Car DVD Player System with GPS Navigator and DVB-T
Main System Information
- Chip Type: SAMSUNG S3C2440A-40
- Frequency: 400MHz
- DDR SDRAM: 64 MB
- Internal Flash Memory: 128 MB
- External Memory (SD card support): up to 4GB (free 2GB SD card included)
- Operating System: Microsoft Windows CE 5.0 (compatible with all major GPS software packages)
GPS Information:
- Receiver Module: SiRF Star III
- Frequency: 1.57542GHZ
- C/A Code: 1.023 MHZ chip rate
- Signal Channels: 20
- Tracking Sensitivity: -159dBm
- Position Sensitivity: 10m, 2D RMS; 5m, 2D RMS, WAAS enable
- Speed Rate: 0.1m/s
- Data Update Rate: 1Hz
- Recapture Time: 0.1s on Average
- Hot Startup Time: Average 1s
- Warm Startup Time: 38 seconds on average
- Cold Startup Time: 42 seconds on average
- Maximum Position Altitude: 18,000 m
- Maximum Speed Rate: 515 cm/s
- Built-in Antenna Type: Built-in active ceramic antenna
- Built-in Antenna Voltage: 3.3V +/- 5%
- Built-in Antenna Current: 15mA
- Built-in Antenna Gain: 27dB
- Interface: Touch Screen
- GUI Interface: YES - 3D type
- Maps: via SD card
- Voice: YES
- PIP (Picture in Picture) Function
- GPS Menu Languages: (Actual voice and display language depends on GPS software package)
Discs: DVD, CD, VCD, Super VCD, CD-R/RW, CD+R/RW, DVD-R/RW
Media Formats Supported:
- Video: DAT, DIVX 3 AVI, DIVX 5, MPEG 1/2/4, VOB, XVID AVI, XVID MP4
- Audio: AAC, WMA, MP3
- Picture: JPEG
External Memory
- USB Drive: YES (max 8 GB)
- SD Card: YES (max 8 GB)
Operation: Touch Screen or Remote Control
Display Information
- Screen: 7 Inch TFT LCD
- Resolution: 800 x 480
- Angle: 0-90 (Motorized sliding display panel)
- Video Systems: PAL, NTSC, AUTO
Audio Information
- Max Audio Output: 50W x 4
- Signal-To-Noise Ratio (SNR): >85dB
- User adjustable EQ: Bass, Treble, Balance, and Fade
DVD Information
- PIP (Picture in Picture) Function
- Auto Play ON/OFF
- 16:9, 4:3 PS, 4:3 LB
- DVD Menu Languages: English, Chinese, German, Spanish, French, Italian
DVB-T Information
- DVB-T receiving standard: MPEG-2
- Automatic and Manual Search
- Display: 16:9, 4:3
- PIP (Picture in Picture) Function
AM/FM Radio Tuner Information
- AM Frequency Range: 522~1710KHz (Worldwide)
- FM Tuning Range: 87.5~108.0MHz (Worldwide)
- RDS System: YES
- PTY (Program Type), AF (Alternative Frequencies), TA (Traffic Announcements), Local DX Switch
Bluetooth Information
- Pair with mobile phone - then use touchscreen interface
- Dial, Answer, Stop Call
- Call History (Dialed, Received, Missed)
- Volume Control
- Touchscreen Keypad
- Pair with your cellphone and play music from your phone through your car speakers
Media Inputs
- DVD/CD disc slot (behind touchscreen)
- SD/MMC card slot (behind touchscreen)
- GPS card slot (behind touchscreen)
- Mini USB input (rear)
- AUX input (rear)
- GPS Antenna (rear)
Front Panel Controls
- Power Button
- Reset Button
- Remote Control Sensor
- Tuning/Select Tracks
- Screen Raise
- Select Button
- Screen Lower
- Volume Lower
- Volume Raise
- Eject Button
- Microphone
- Mute
Primary AV Cables / Wires
- IPOD input
- DVB-T input
- USB input
- GPS antenna input
- Radio antenna input
- RCA Audio OUT x2 (front L and R)
- RCA Audio OUT x2 (rear L and R)
- Aux-L IN
- Aux-R IN
- Subwoofer
- Video IN
- Video OUT x2
- Rearview CCD Camera IN
- Left Front Speaker x2
- Right Front Speaker x2
- Left Rear Speaker x2
- Right Rear Speaker x2
Time and Date display: YES
Dimensions W: 178 mm H: 100 mm D: 160 mm (with front panel: 179 mm)
OSD Languages: English, Chinese
Certifications: CE, FCC, ROHS
Manufacturer Ref: KNGWLF888811
Product Notes
DVB-T does not work in North America - the United States, Canada, Mexico
This model is compatible with most brands of GPS software - however hardware specific software such as Garmin may not run on this unit. As the wholesaler, Chinavasion provides the GPS-enabled hardware only, not the software. Chinavasion provides no warranty or customer support regarding GPS software. Chinavasion cannot provide downloads / links / advice regarding GPS software. Any software installation you undertake should be performed or supervised by a professional.
The USB port is a great way to hook up your portable media player with your car entertainment center
Connect your iPod to listen to your entire music collection on your car stereo system
Wonder if you can really do it yourself? Check this out - Informati on On Installing A Car DVD Player
If you plan to resell this item in your own country, the most common category names for this product are - Autoradio DVD, Lecteur DVD de Voiture, Auto DVD Player
Package Contents for Model CVET-C56
Car Multimedia Player
Remote Control with battery included
Free 2GB SD Card with evaluation GPS software and maps
Magnetic GPS antenna with 300 cm cord
Magnetic DVB-T antenna with 300 cm cord
iPod Cable
Mounting Hardware
Pen Stylus
Users Manual - English
